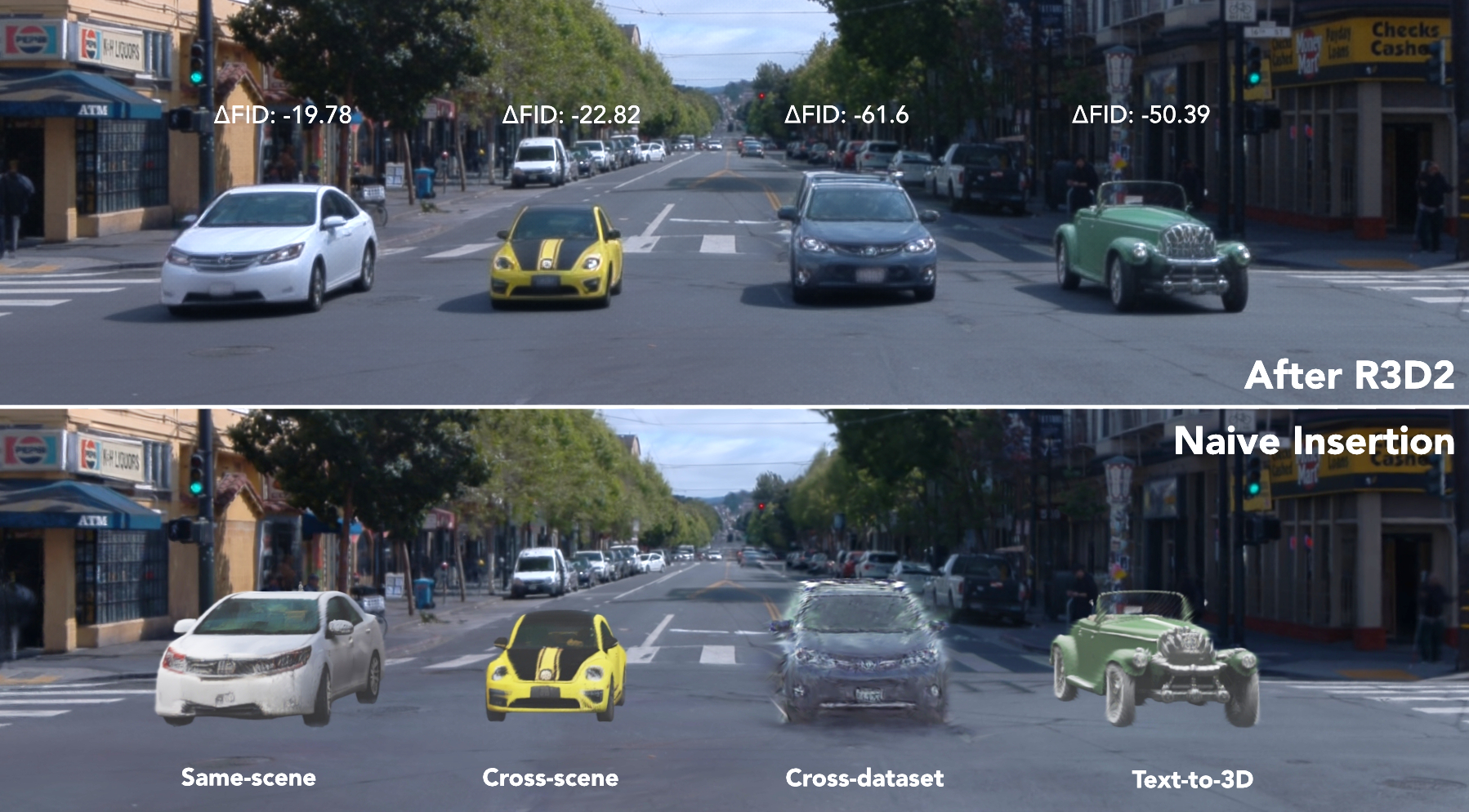

Fig 1.: R3D2 enables realistic insertion of 3D assets from different origins into existing scene reconstructions. From left to right, assets are sourced from: the same scene, a different scene, a different dataset, and a text-to-3D generative model. Bottom: naive insertion, top: insertion + R3D2.

---

Abstract

Validating autonomous driving (AD) systems requires diverse and safety-critical testing, making photorealistic virtual environments essential. Traditional simulation platforms, while controllable, are resource-intensive to scale and often suffer from a domain gap with real-world data. In contrast, neural reconstruction methods like 3D Gaussian Splatting (3DGS) offer a scalable solution for creating photorealistic digital twins of real-world driving scenes. However, they struggle with dynamic object manipulation and reusability as their per-scene optimization-based methodology tends to result in incomplete object models with integrated illumination effects. This paper introduces R3D2, a lightweight, one-step diffusion model designed to overcome these limitations and enable realistic insertion of complete 3D assets into existing scenes by generating plausible rendering effects—such as shadows and consistent lighting—in real time. This is achieved by training R3D2 on a novel dataset: 3DGS object assets are generated from in-the-wild AD data using an image-conditioned 3D generative model, and then synthetically placed into neural rendering-based virtual environments, allowing R3D2 to learn realistic integration. Quantitative and qualitative evaluations demonstrate that R3D2 significantly enhances the realism of inserted assets, enabling use-cases like text-to-3D asset insertion and cross-scene/dataset object transfer, allowing for true scalability in AD validation.

---

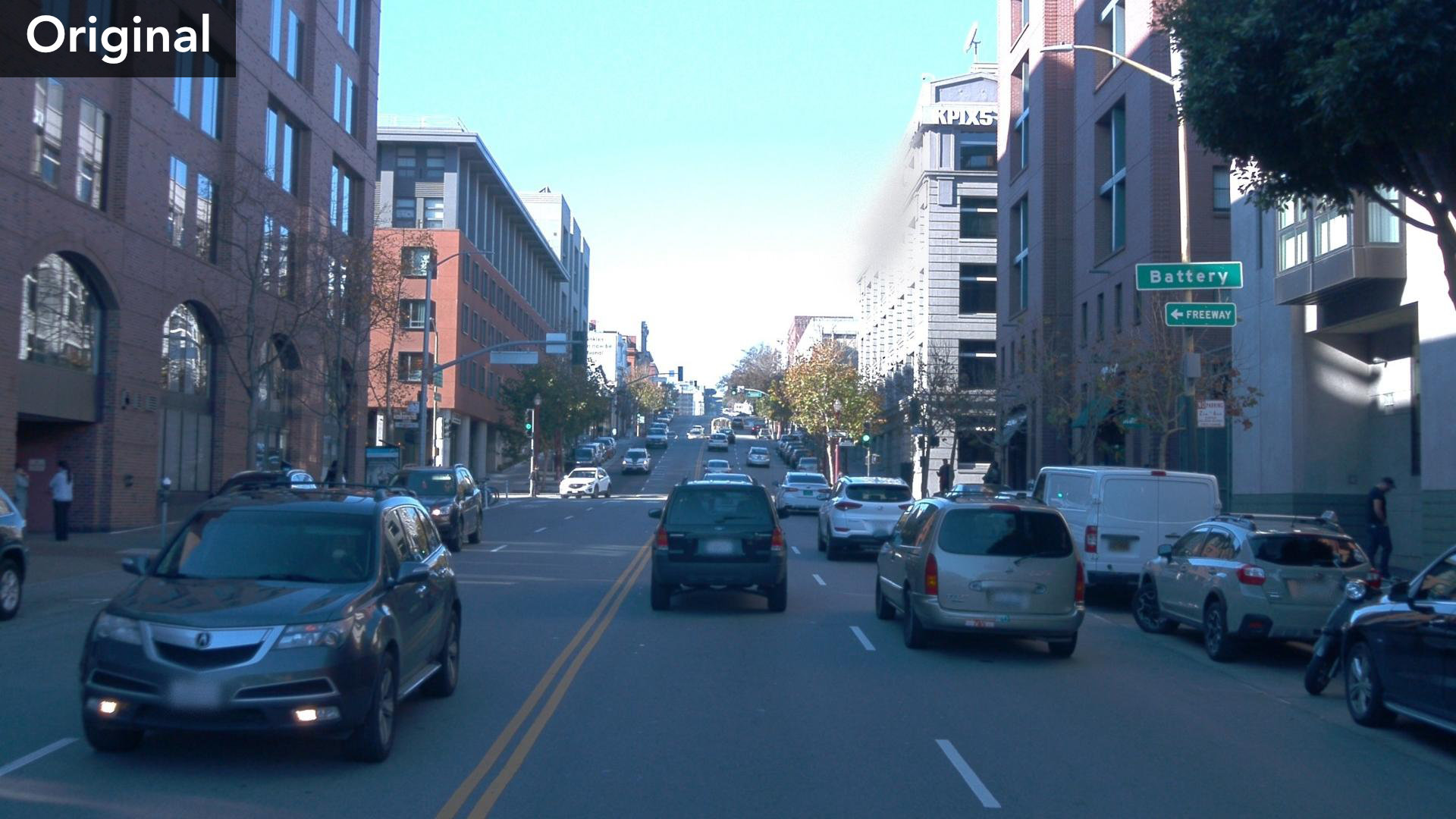

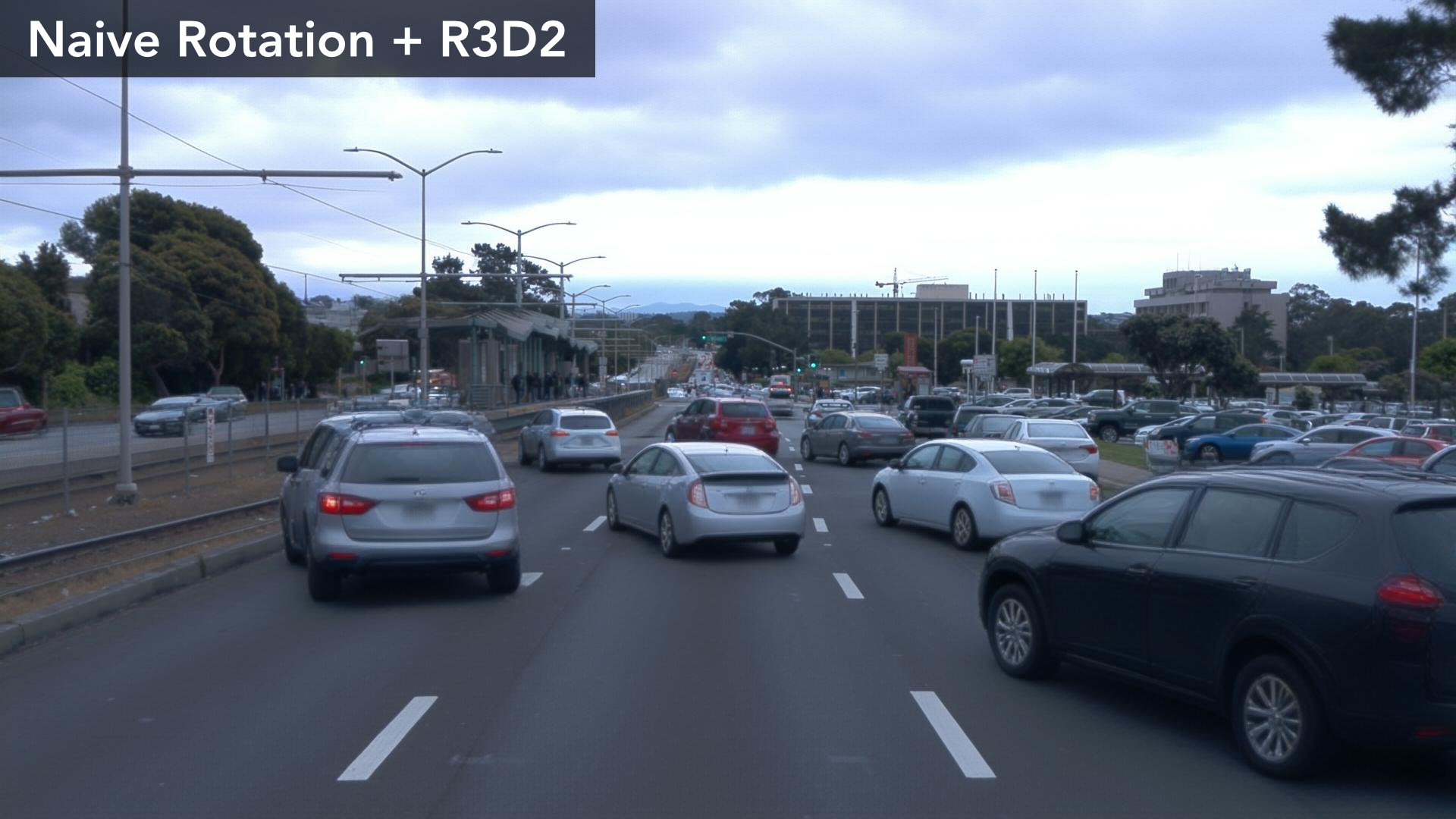

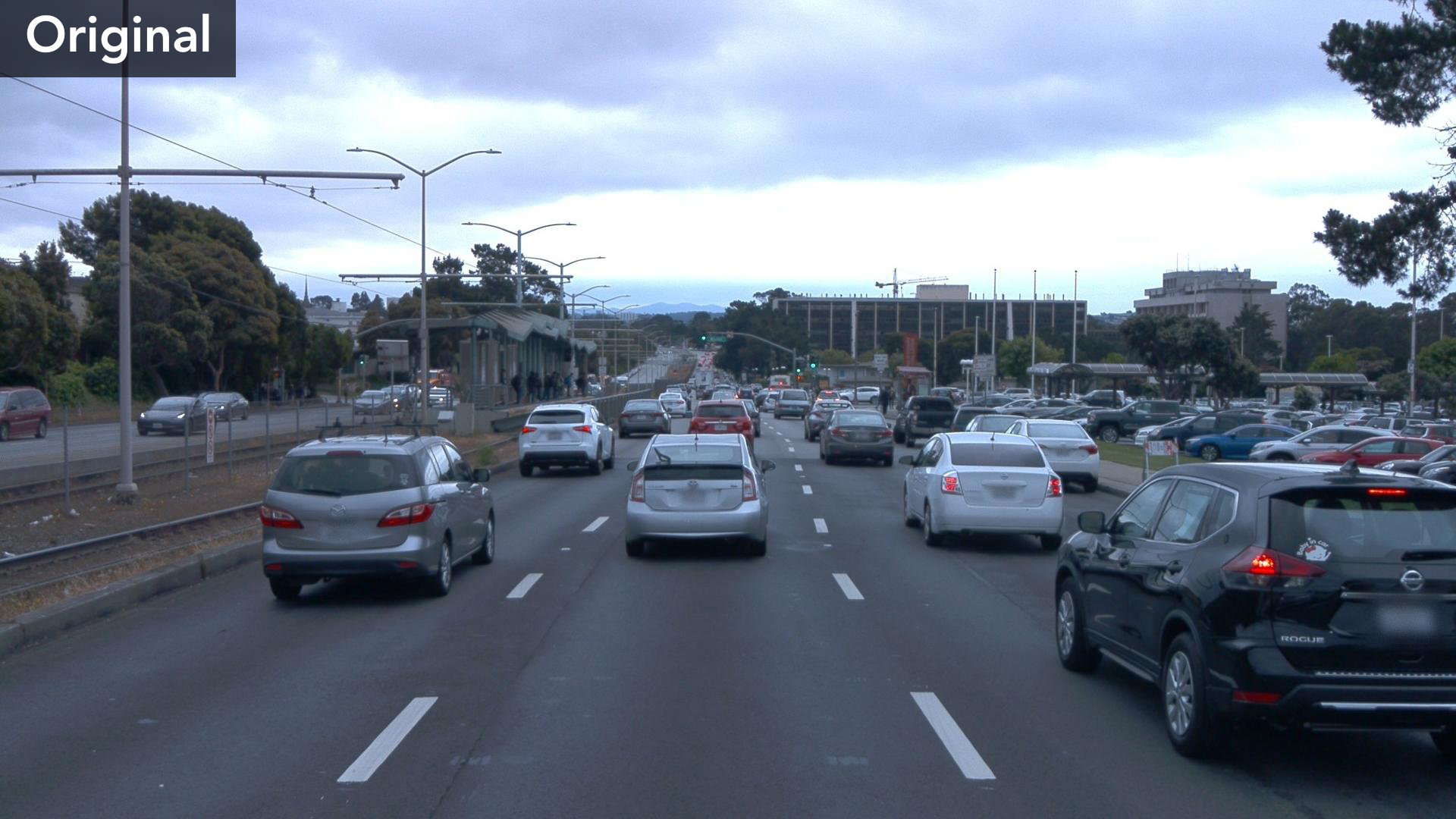

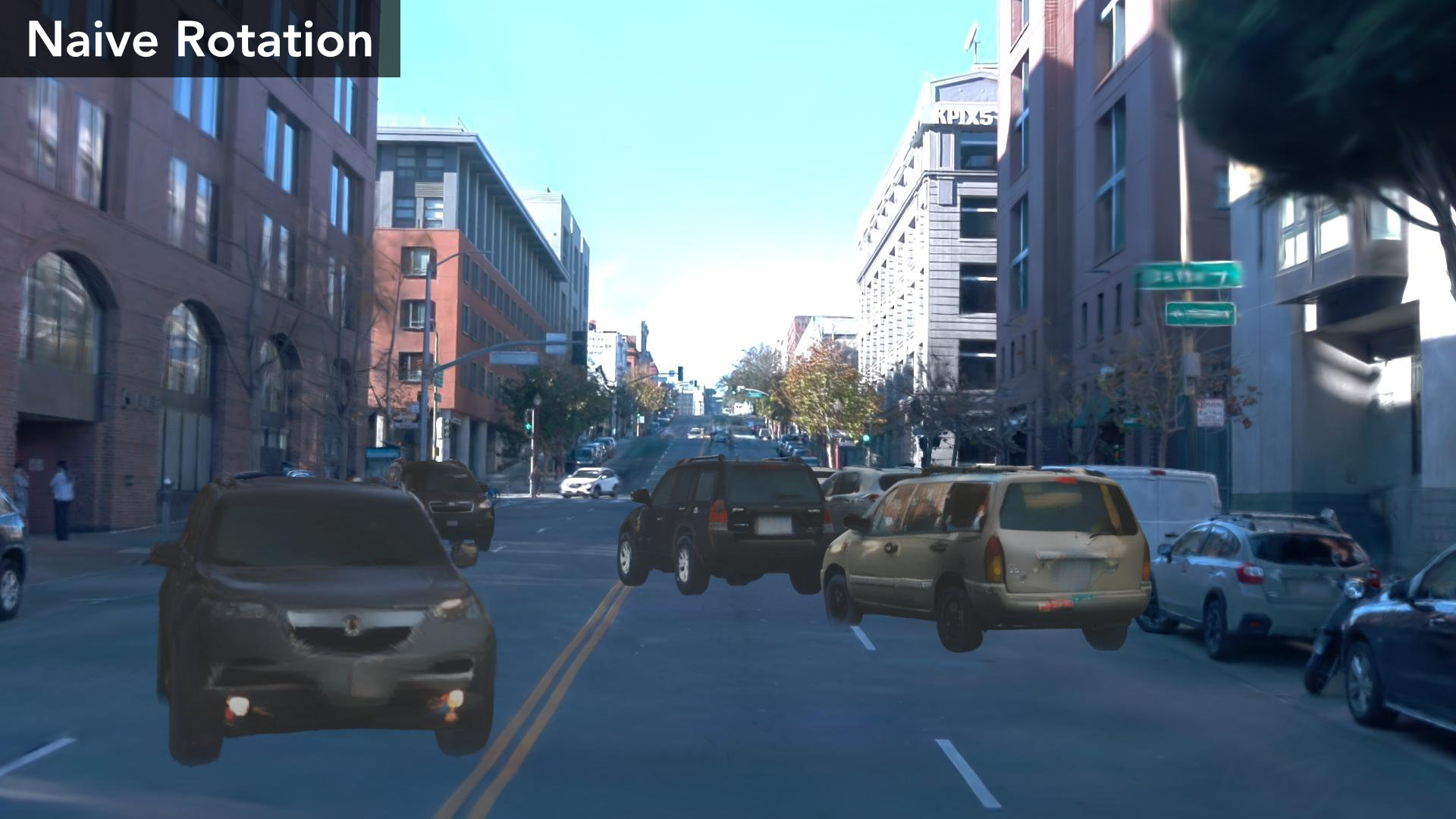

Object Rotation

We show how our method is able to help improve rendering of manipulated actors. We rotate all actors 20 degrees and run the rendered image with R3D2.

Hover the image to rotate objects, and click to see before R3D2

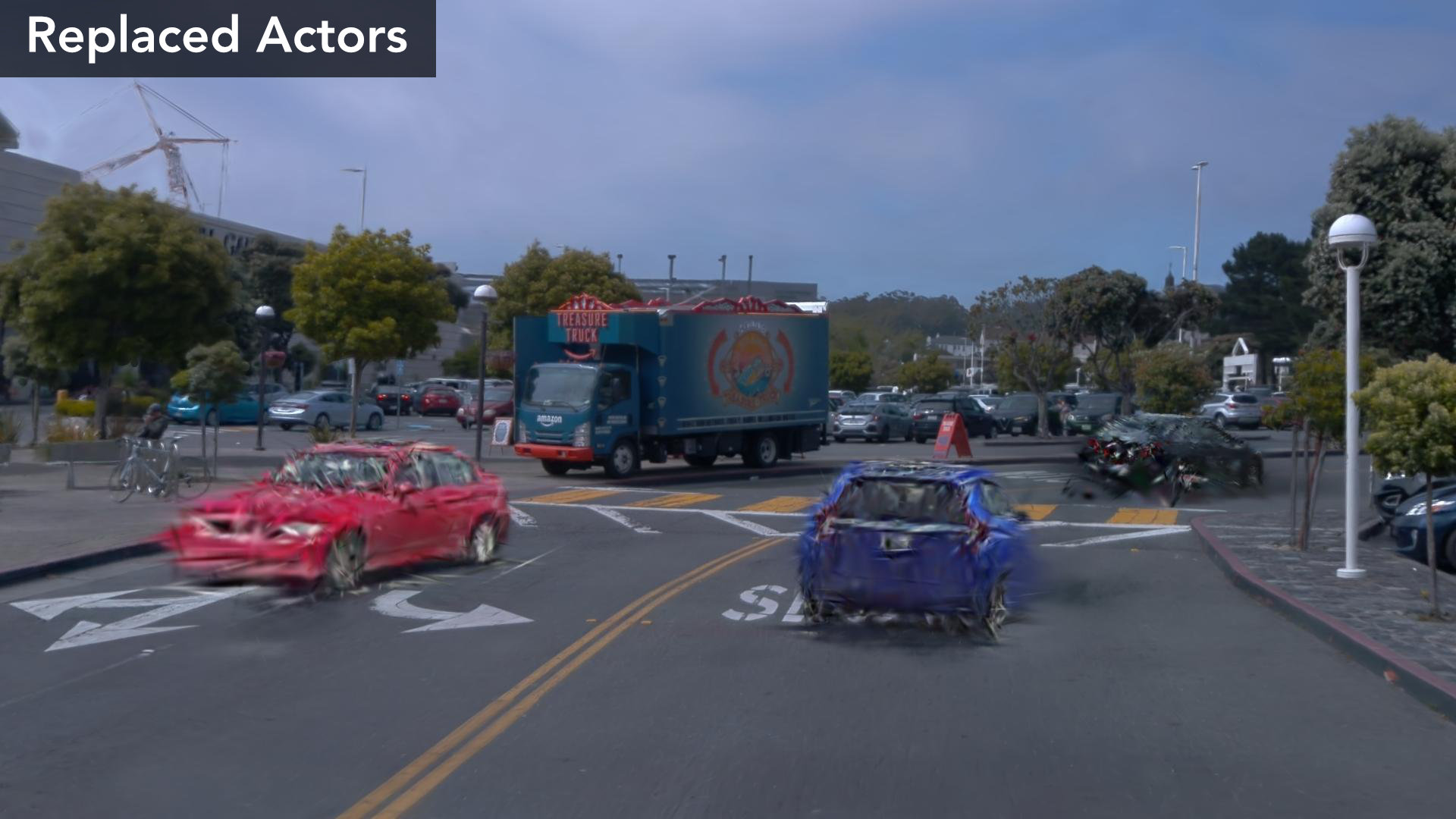

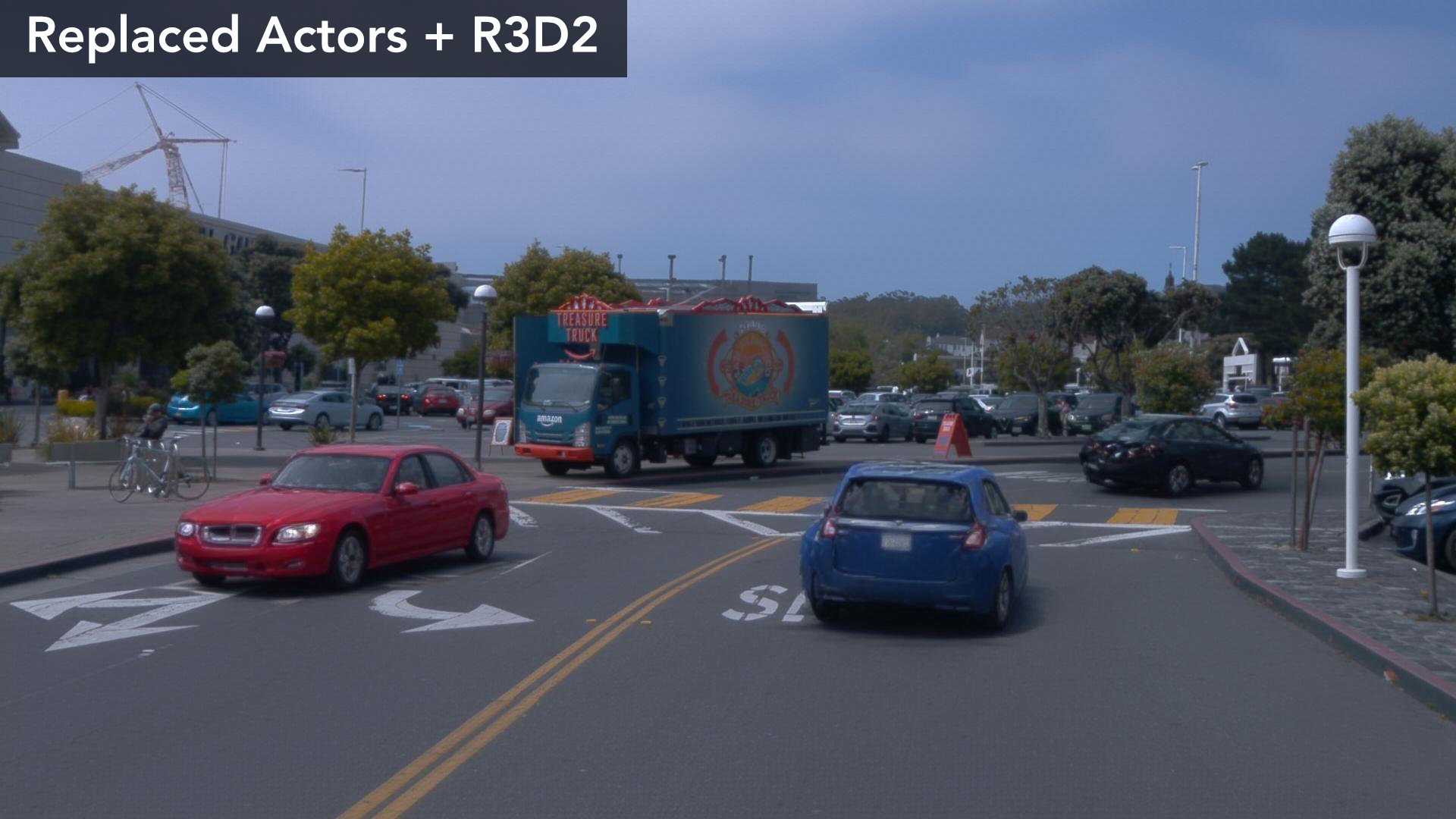

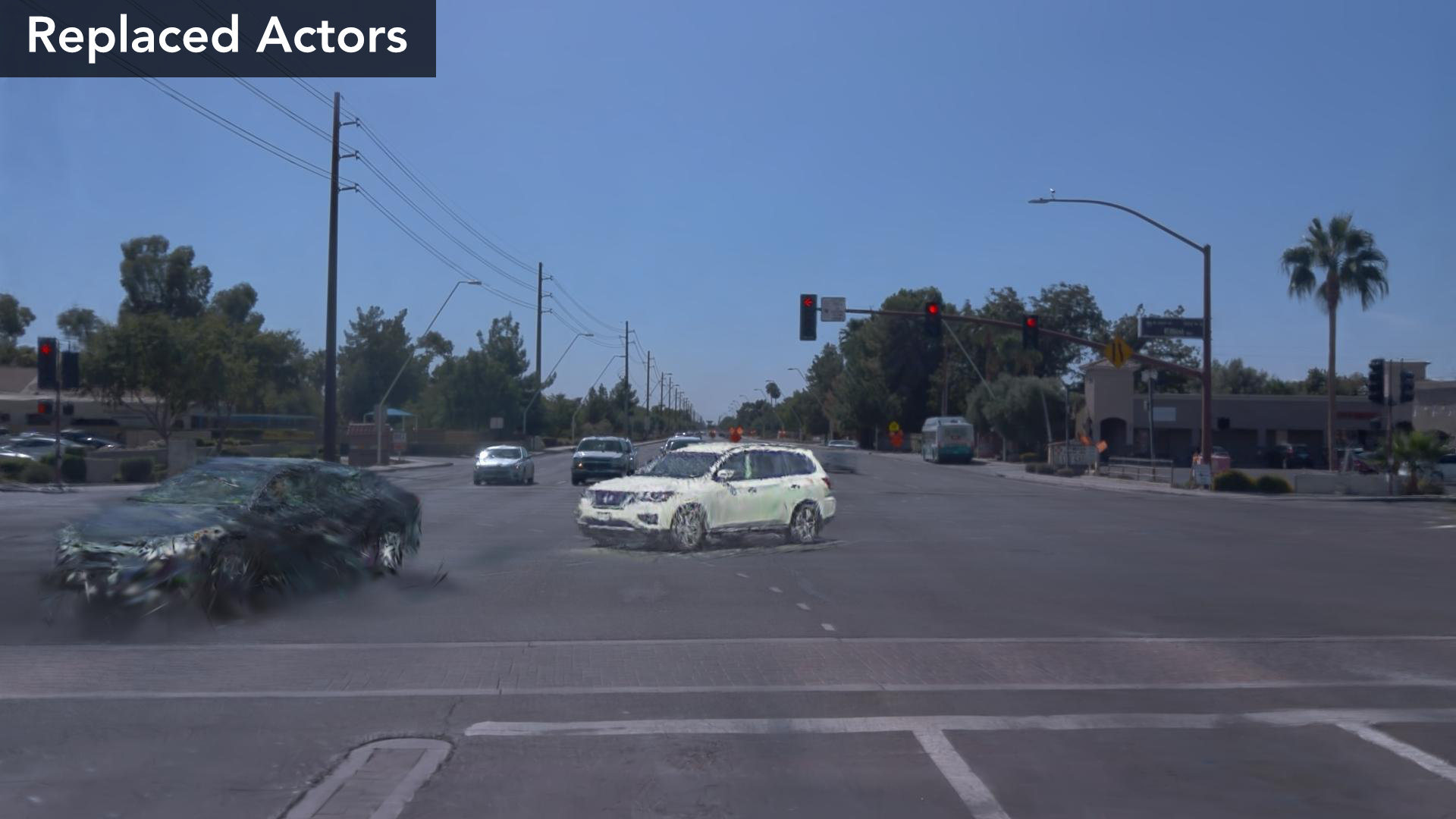

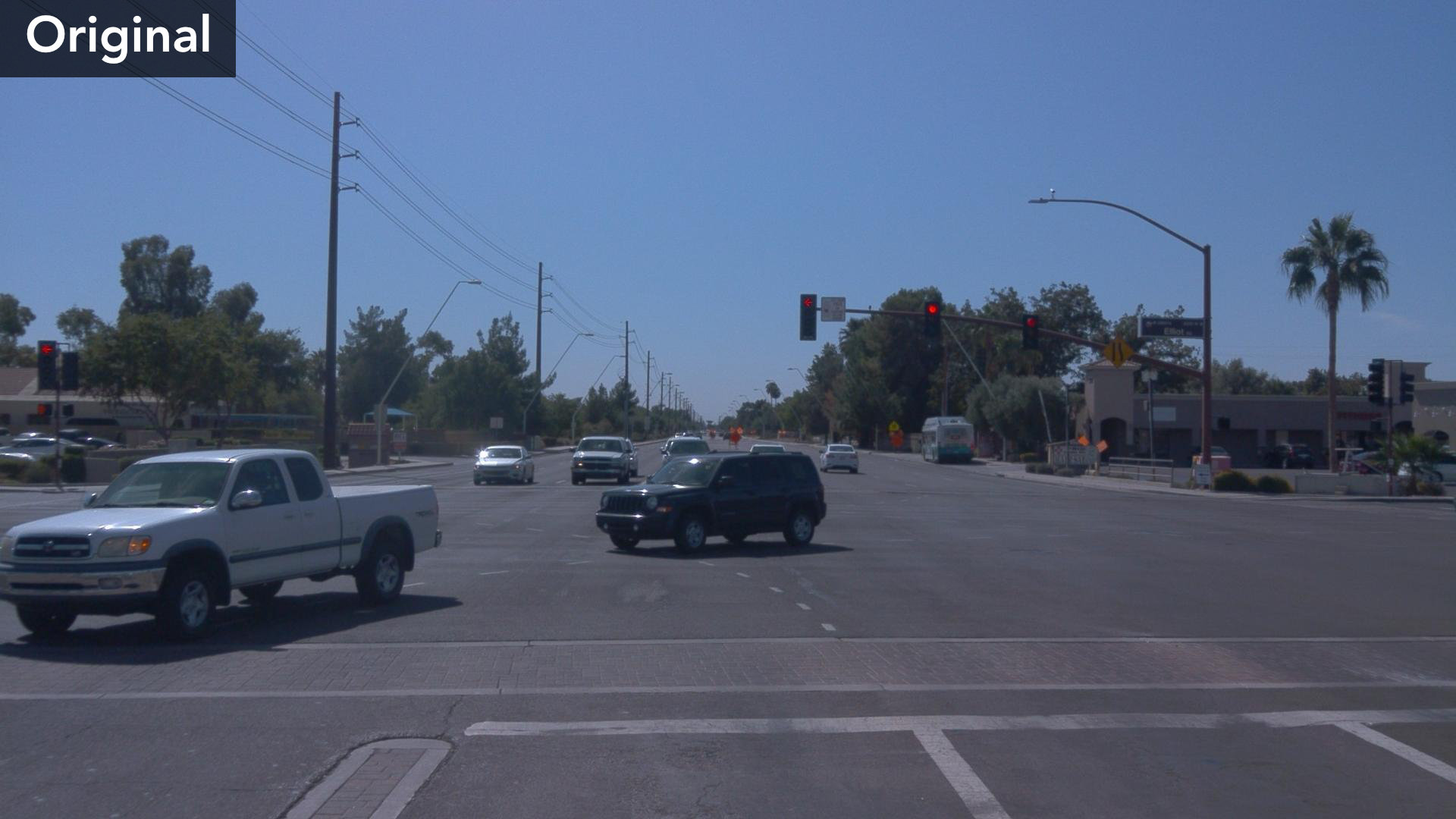

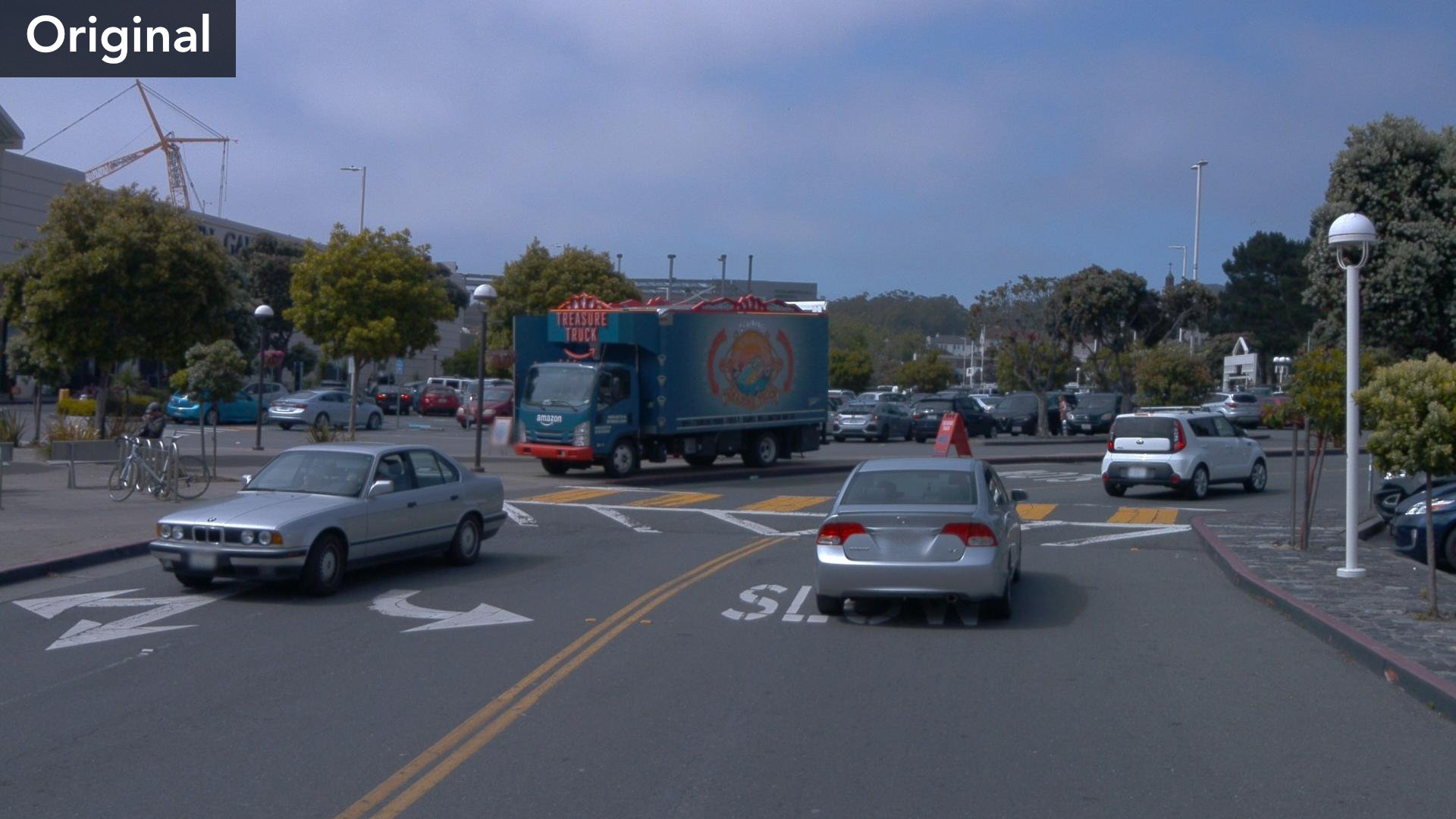

Cross-Dataset Object Insertion

In these we replaced the assets of 3DGS scenes from Waymo with 3DGS assets from PandaSet sequences.

Hover the image to replace actors, and click to see before R3D2

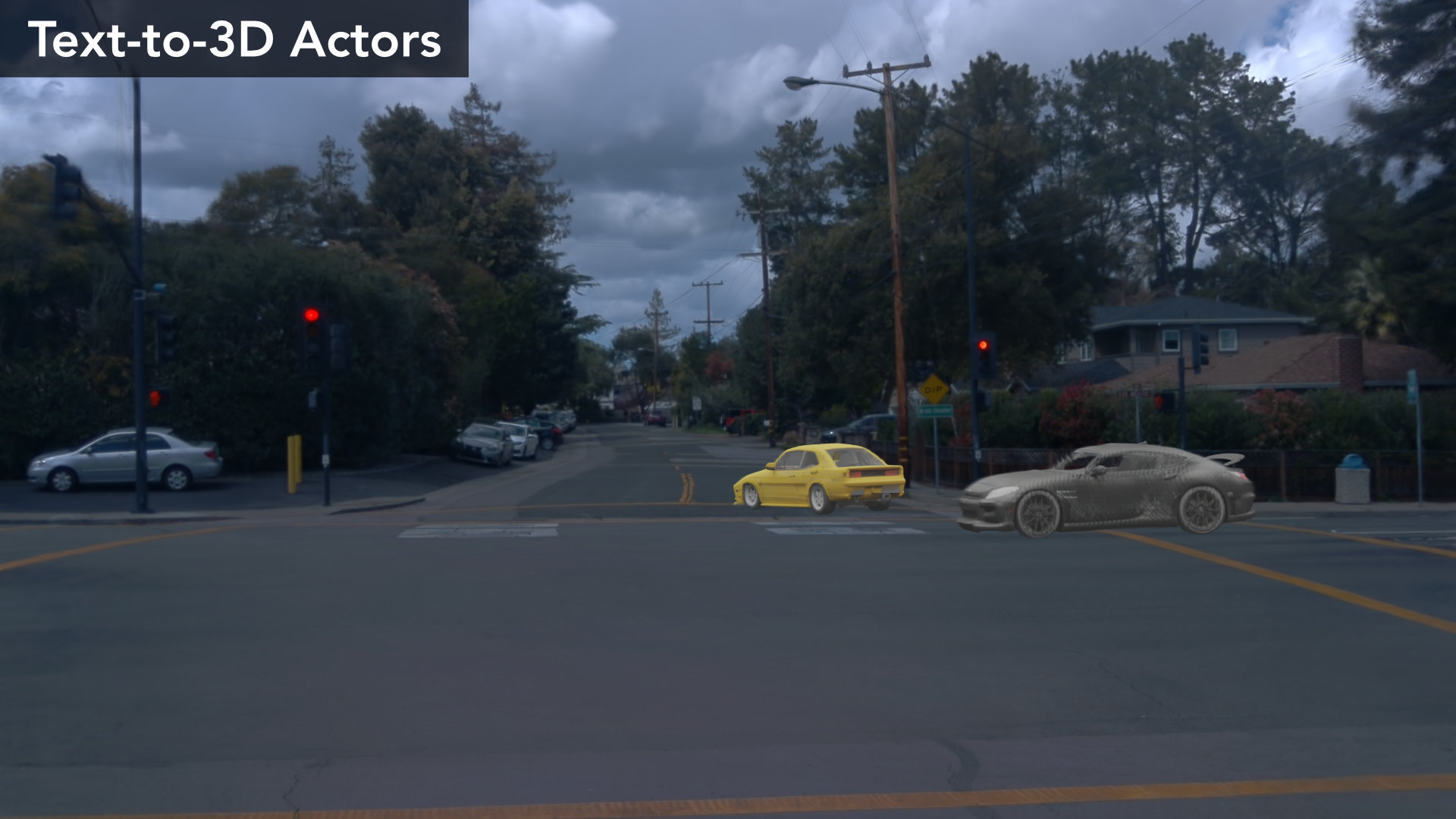

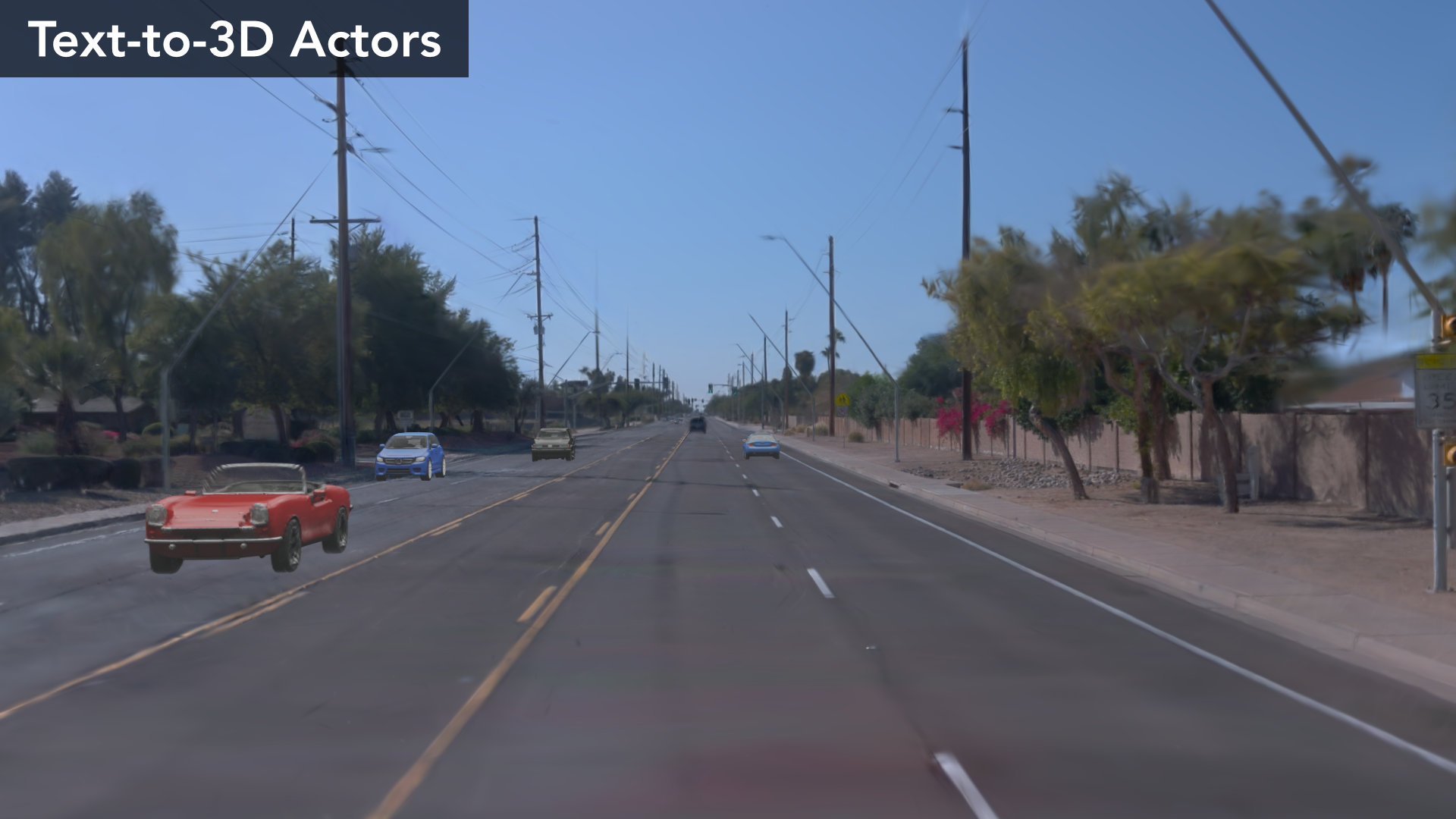

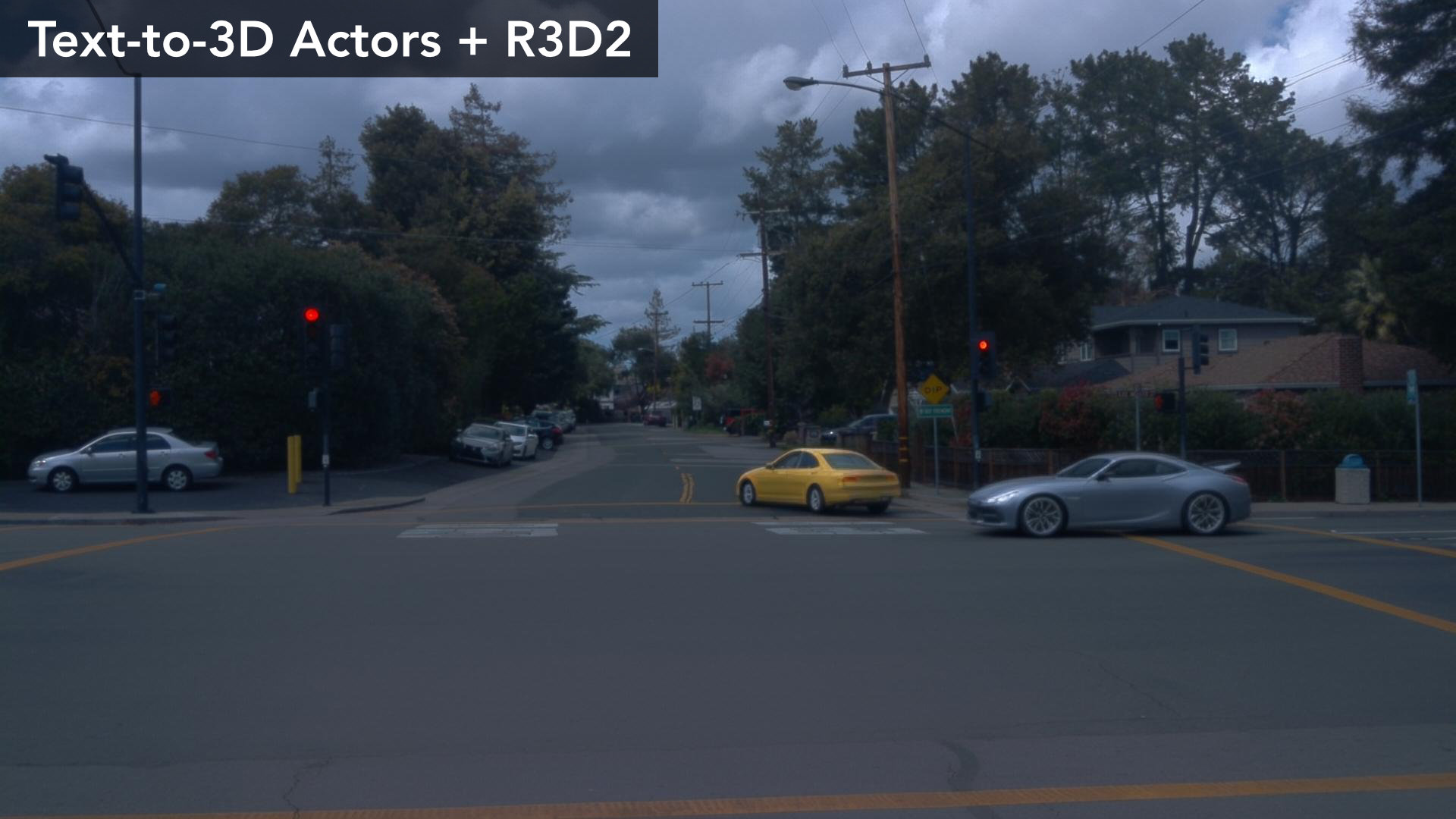

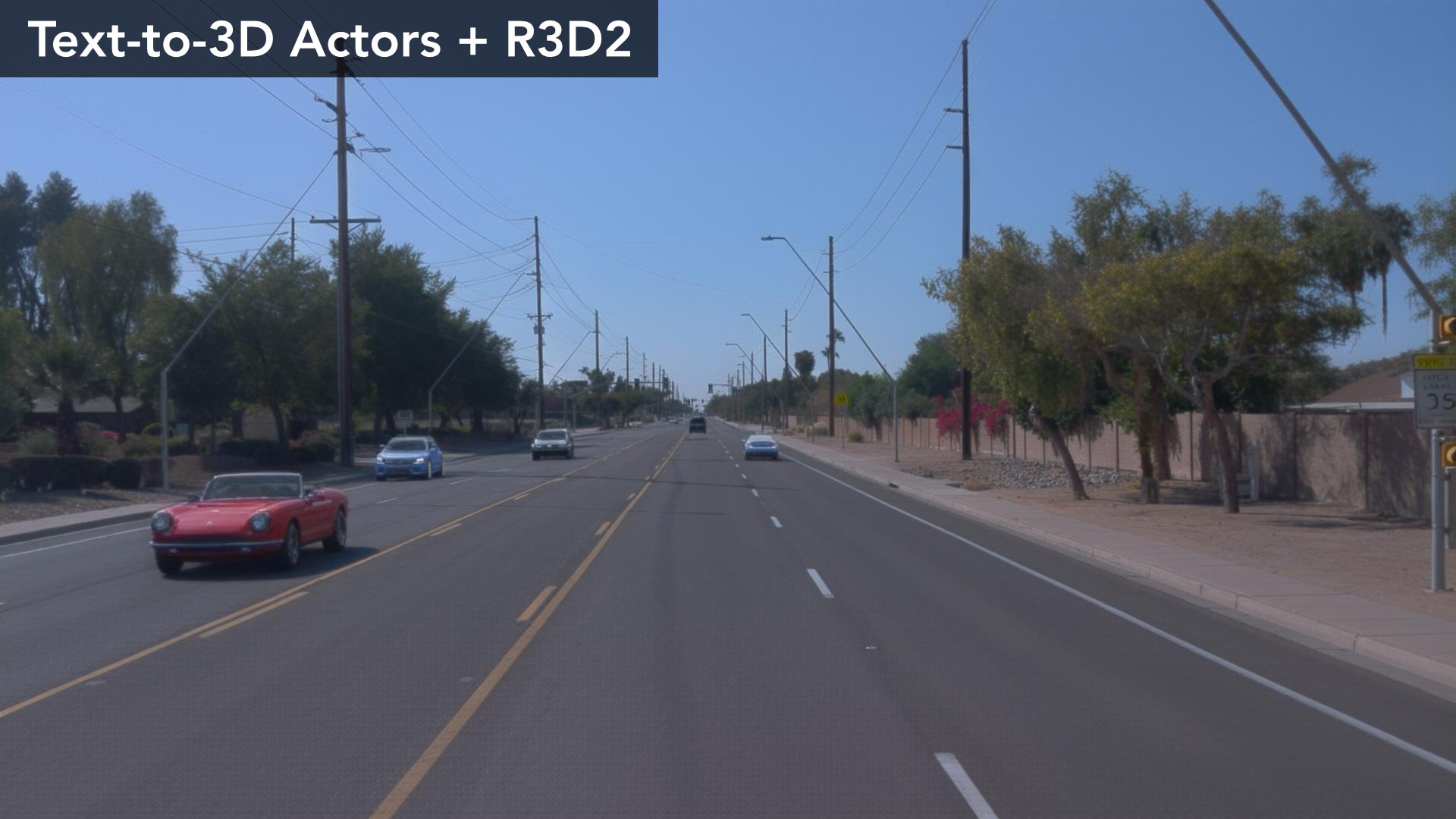

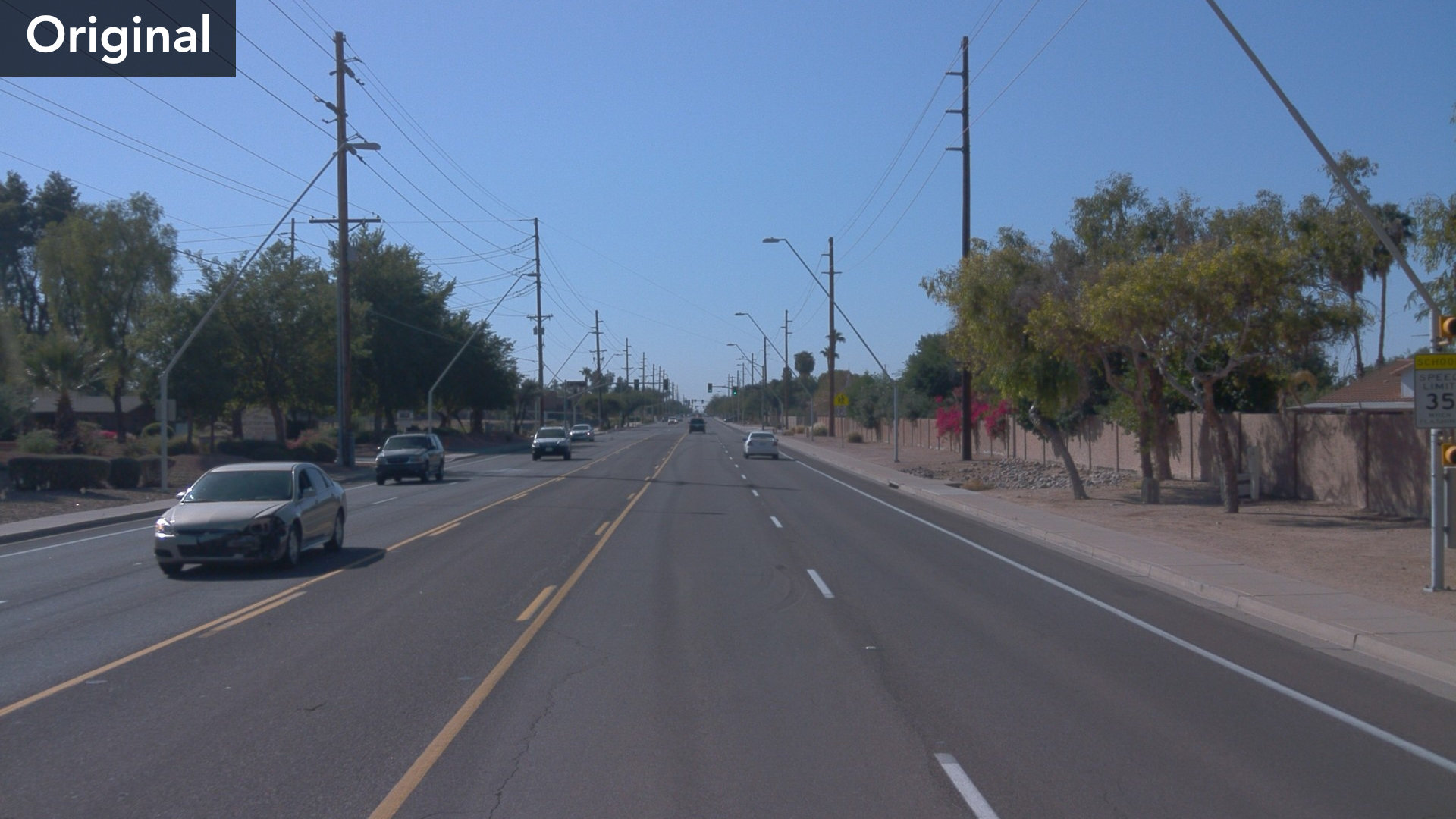

Text-to-3D Object Insertion

Hover the image to replace actors, and click to see before R3D2

Bibtex

@article{ljungbergh2025r3d2,
  title        = {R3D2: Realistic 3D Asset Insertion via Diffusion for Autonomous Driving Simulation},
  author       = {Ljungbergh, William and Taveira, Bernardo and Zheng, Wenzhao and Tonderski, Adam and Peng, Chensheng and Kahl, Fredrik and Petersson, Christoffer and Felsberg, Michael and Keutzer, Kurt and Tomizuka, Masayoshi and Zhan, Wei},
  journal      = {arXiv preprint arXiv:2506.07826},
  year         = {2025}
}
